NT1065_EVK2 RF IC EVALUATION KIT

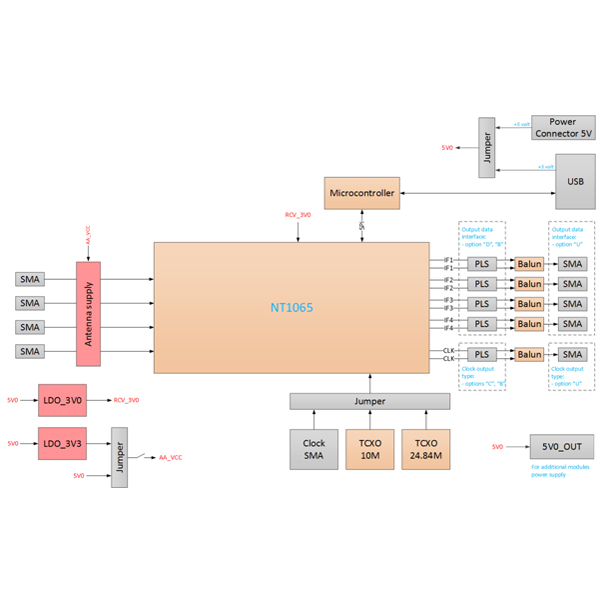

NT1065_EVK2 is an evaluation platform for performance and capabilities demonstration of NT1065: 4-channel GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS L1, L2, L3, L5, E1, E5a, E5b, E6, B1, B2, B3 band RF Front End. It is suitable the most for in-lab examining with measurement equipment like spectrum analyzer, oscilloscope, network analyzer and etc, but also it has connectors for wiring to external development platforms.

KEY FEATURES

IO ports:

• Every channel individual RF input with active antenna supply option
• Every channel IF output ready to connect either as digital 2-bit CMOS or differential analog signal (single ended is also available as assembly option)
• External reference frequency input (TCXO)
• CLK output ready to connect either as CMOS or LVDS (single-ended sinewave is also available as assembly option)
• Embedded USB to SPI adapter for NT1065 registers configuration

On-board reference frequency sources:

• 10 MHz 0.28ppm high-stability TCXO
• 24.84 MHz 1.5ppm TCXO

Additional modules:

• 1 to 4 RF splitter
• 2 to 4 RF splitter
• 4-channel RF preselector

Comprehensive software and manual:

• NT1065_EVK2 user manual
• GUI for NT1065 registers access (Windows 7/8/8.1/10 and Linux Ubuntu 16.04 compatible)
• Configuration examples
• NT1065 datasheet
• Database of reference design
