NT1065_FMC2 RF IC EVALUATION KIT

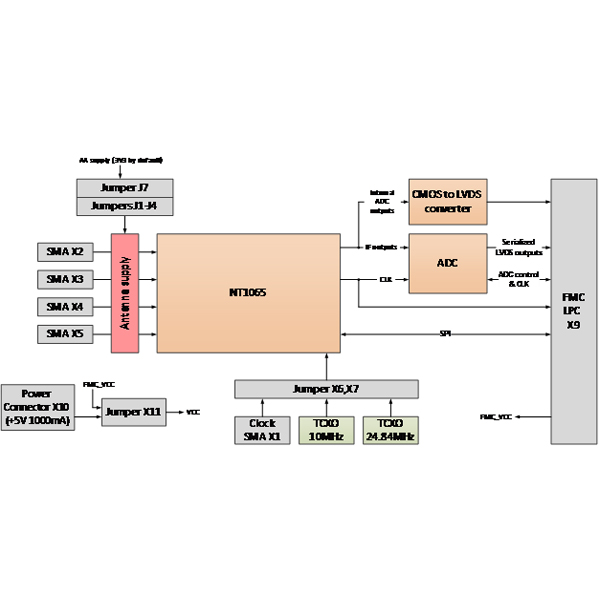

NT1065_FMC2 is a FPGA Mezzanine Card intended to demonstrate performance and capabilities of NT1065: 4-channel GPS/GLONASS/Galileo/BeiDou/NavIC/ QZSS L1, L2, L3, L5, E1, E5a, E5b, E6, B1, B2, B3 band RF Front End. All outputs and controls are routed to FMC connector, which allows to mount FPGA Mezzanine Card to any compatible FPGA to build your system prototype with the platform you got used to work with.

KEY FEATURES

IO ports:

• Every channel individual RF input with active antenna supply option
• External reference frequency input (TCXO)
• FMC LPC connector compatible to PicoZed FMC Carrier V2 and FPGA development boards: ZC706/ML605/Arria V GX and others boards with LPC or HPC connector
• 2-bit @50MSPS NT1065 output or 12/14-bit @105MSPS external ADC output (optional)

On-board reference frequency sources:

• 10 MHz 0.28ppm high-stability TCXO
• 24.84 MHz 1.5ppm TCXO

Additional modules:

• 1 to 4 RF splitter/preselector
• 2 to 4 RF splitter/preselector
• 4-channel RF LNA preselector

Comprehensive software and manual:

• NT1065_FMC2 user manual
• GUI for NT1065 registers access (Windows 7/8/8.1/10 and Linux Ubuntu 16.04 compatible)
• FPGA project for signals acquisition and NT1065 configuration
• Configuration examples
• NT1065 datasheet
• Database of reference design
