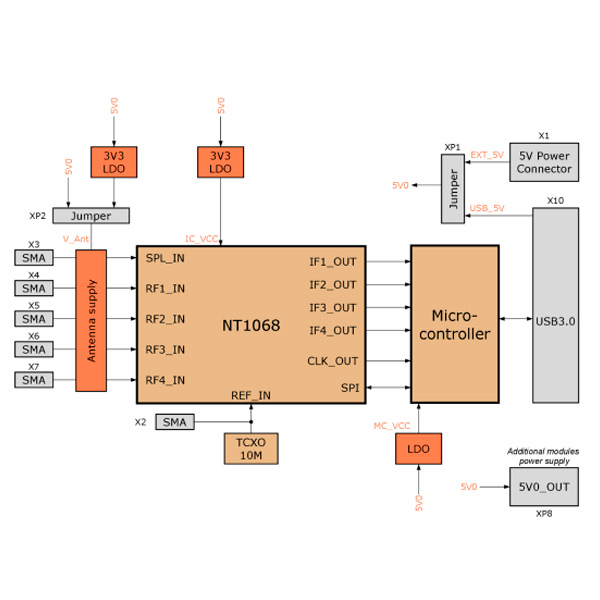

NT1068.2_USB3 is an evaluation platform for performance and capabilities demonstration of NT1068.2: 4-channel GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS L1, L2, L3, L5, E1, E5a, E5b, E6, B1, B2, B3 band RF Front-End IC. It includes USB3 data converter thus allowing an user to process captured satellite signals on a PC. Data rate is configurable and may be as high as 800 Mbps (200 Mbps per channel)
KEY FEATURES
IO ports:
- RF splitter input with active antenna supply option
- Every channel individual RF input with active antenna supply option
- External reference frequency input (TCXO)
- USB3.0 output
On-board reference frequency sources:
- 10 MHz 0.28ppm high-stability TCXO
Additional modules:
- 1-to-4 RF splitter
- 2-to-4 RF splitter
- 4-channel RF preselector
- 1-to-5 RF splitter (SPL15-45514 or
SPL15-465X5 recommended)
Comprehensive software and manual:
- NT1068.2 datasheet
- NT1068.2_USB3 user manual
- GUI for NT1068.2 registers access (Windows 7/8/8.1/10 compatible; Linux Ubuntu 18.04 compatible)
- GUI for USB3 data capture
- NT1068.2 configuration examples
- Database of reference design
