NTL Eva Kit for NTL10X OEM modules family

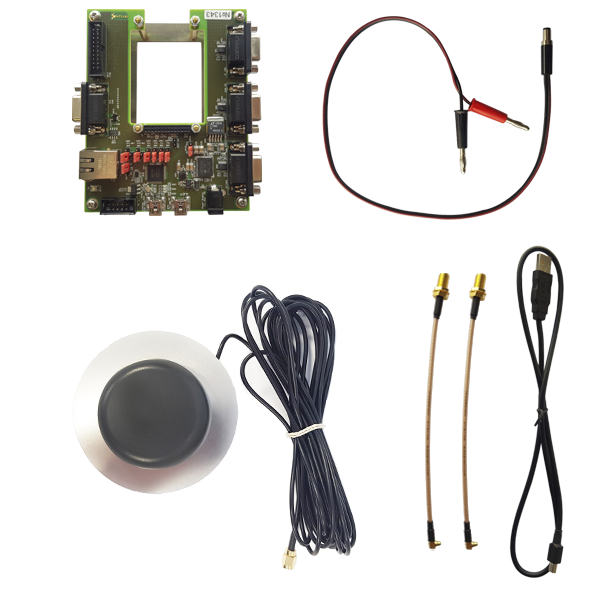

NTL Eva Kit package contains:

  • NTL Eva Board – 1pcs.
  • Survey Antenna HX-CSX608A + TNC male to SMA male antenna cable, 5m – 1pcs. or TW3972 – Triple Band GNSS antenna with L-Band Correction + SMA male antenna cable, 5m – 1pcs.
  • SMA female to MMCX male cables – 2pcs.
  • USB standard A to mini-B cable – 1pcs.
  • Banana plug to male DC jack connector cable – 1pcs.
  • Documentation set
  • Packaging

NTL Eva Board manual NTL Eva Kit TW manual NTL Eva Kit HX manual



GET QUOTE

Category:

Description

NTL Eva Board (interface adapter) is designed to match the interfaces of the NTL10X navigation OEM-modules with standard connectors for ease-of-use. It can be used at the design and testing stages of the software and hardware performance of the OEM modules.

The NTL Eva Kit is a convenient tool that allows customers to integrate GNSS receiver OEM-modules and efficiently demonstrate their key features. The NTL Eva Kit is a powerful platform for evaluation of GNSS receiver OEM-modules.

The NTL Eva Kit includes everything you need to work with the navigation OEM modules of the NTL10X family or other OEM modules form-factor and pinout compatible.



List of interfaces types provided in the NTL Eva Board

Interface type Qt. Connector type
RS232 3 DRB-09FA
CAN 1 DRB-09FA
Ethernet 1 HFJ11-E1G01ERL
USB 2 Mini USB
JTAG 1 BH-20
Connector for OEM modules 1 PBD2-28
